Groundnut Digger

Name : Mr. Yusuf Khanyusuf

District & State :  Sikar, Rajasthan

Category : Agricultural (General)

Award :   National

Award Function :   3rd National Grassroots Innovation Awards

Award Year : 2005

Price :   Rs. 1, 25,000 per unit. (Ex-factory India price + packaging). The price does not include transportation costs, taxes, etc.

Delivery Period : 10 day after confirmed order with 50% as advance payment.

Innovation Description

  • Award Status
  • IPR Status
  • Technical Specification
  • Salient Features

Problem addressed:

digger-yusufGroundnut growing farmers are facing an arduous task of collecting leftover groundnut pods under the soil which are picked up manually consuming lot of labor and time. The yield of the crop is affected as up to 20 percent of pods are left underground during harvest. Complete digging out of all the groundnut pods from the soil is not possible as manual labor is scarce, costly and other means are not available. Innovator Yusuf Khan observed the problem as he himself is a farmer and developed Groundnut Digger to solve the problem faced by the farmers.

Groundnut growing farmers are facing an arduous task of collecting leftover groundnut pods under the soil which are picked up manually consuming lot of labor and time. The yield of the crop is affected as up to 20 percent of pods are left underground during harvest. Complete digging out of all the groundnut pods from the soil is not possible as manual labor is scarce, costly and other means are not available. Innovator Yusuf Khan observed the problem as he himself is a farmer and developed Groundnut Digger to solve the problem faced by the farmers.

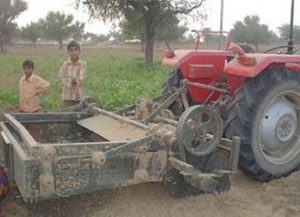

The innovator has developed a tractor operated machine, which mechanically digs out the left over pods from the soil. It consists of elaborate system of crankshafts, flywheel, connecting linkages and rotating vanes on a shaft. A sieve is provided with a vibrating mechanism to filter the groundnut from the soil. As the tractor moves forward, the vanes rotate and dig into the ground, scoop and drop the soil-groundnut mixture into a vibrating storage unit with a sieve base. The system of linkages and drives vigorously vibrate the entire unit to shake the soil loose and the groundnuts stay trapped at the top in the central storage unit as the soil gets sifted out onto the ground. A window hatch is provided at the back that can be lifted and the groundnut taken out by a person into a basket.

http://nif.org.in/innovation/groundnut-digger/745
