Groundnut Digger

Name : Sanjay Kumar D. Tilwasanjay-tilwa

District & State :  Rajkot, Gujarat

Category : Agricultural (General)

Award :

Award Function :   7th National Grassroots Innovation Awards

Award Year : 2013

Price :   Rs. 95,000 – (Ex-factory India+packaging). The price does not includes transportation cost, taxes etc.

Delivery Period : 3 weeks after placing confirmed order and full payment

Innovation Description

  • Award Status
  • IPR Status
  • Technical Specification
  • Salient Features

Problem addressed:

digger-tilwaOne of the major challenges faced by farmers is the shortage of labor for harvesting operations. The availability of labor is found to be very difficult these days in villages as most of them are running towards cities. If available then the charges paid to them are high and days needed for harvesting takes long time.

One of the major challenges faced by farmers is the shortage of labor for harvesting operations. The availability of labor is found to be very difficult these days in villages as most of them are running towards cities. If available then the charges paid to them are high and days needed for harvesting takes long time.

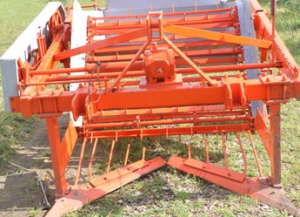

The tractor mounted, PTO powered groundnut digger consists of a telescopic propeller shaft, gearbox for suiting the machine to be fitted with standard 540 or 1000 rpm PTO, heavy duty endless chain conveyor made of MS flat of 1165 x 40 x 8 mm – riveted/bolted at 125 mm spacing to two chains with driving sprockets and support wheels in the middle, digging blades arranged in V shape of dimensions 1070 x 125 x 12 mm made of EN8 (high carbon steel). The uprooted groundnuts are conveyed from ground level to a a higher level for collection using a conveyor belt. The belt keeps vibrating as a result of which the pods get cleaned of the attached soil.
